Harrat Rahat

Photo of this volcano
Google Earth icon
  Google Earth Placemark with Features
  • Country
  • Volcanic Region
  • Primary Volcano Type
  • Last Known Eruption
  • 23.08°N
  • 39.78°E

  • 1744 m
    5720 ft

  • 231070
  • Latitude
  • Longitude

  • Summit

  • Volcano

The Global Volcanism Program has no activity reports for Harrat Rahat.

The Global Volcanism Program has no Weekly Reports available for Harrat Rahat.

The Global Volcanism Program has no Bulletin Reports available for Harrat Rahat.

Basic Data

Volcano Number

Last Known Eruption



1256 CE

1744 m / 5720 ft


Volcano Types

Volcanic field

Rock Types

Basalt / Picro-Basalt
Trachybasalt / Tephrite Basanite
Trachyandesite / Basaltic trachy-andesite
Trachyte / Trachyandesite

Tectonic Setting

Continental crust (> 25 km)


Within 5 km
Within 10 km
Within 30 km
Within 100 km

Geological Summary

Saudi Arabia's largest lava field, 20,000 sq km Harrat Rahat extends for 300 km south of the holy city of Al Madinah (Medina). Four coalescing lava fields erupted from offset NNW-trending vent systems comprise Harrat Rahat, which has an average width of 60 km. Lava flows extend as far as 100 km west of the axis of the field. Basaltic scoria cones dominate Harrat Rahat, but the volcanic field has also produced more silicic trachy-basaltic to trachytic rocks. Small shield volcanoes and pelean-type lava domes with associated pyroclastic-flow and -surge deposits are also present. Activity has migrated to the north, resulting in eruptions in historical time near Madinah. The best-known eruption took place in 1256 CE, when a 0.5 cu km lava flow erupted from six aligned scoria cones and traveled 23 km to within 4 km of Madinah.


The following references have all been used during the compilation of data for this volcano, it is not a comprehensive bibliography.

Brown G F, Schmidt D L, Huffman A C Jr, 1984. Geology of the Arabian Peninsula western shield area. U S Geol Surv, Open-File Rpt, 84:203: 1-217.

Camp V E, Hooper P R, Roobol M J, White D L, 1987. The Madinah eruption, Saudi Arabia: magma mixing and simultaneous extrusion of the three basaltic chemical types. Bull Volc, 49: 489-508.

Camp V E, Roobol M J, 1989. The Arabian continental alkali basalt province: Part I. Evolution of Harrat Rahat, Kingdom of Saudi Arabia. Geol Soc Amer Bull, 101: 71-95.

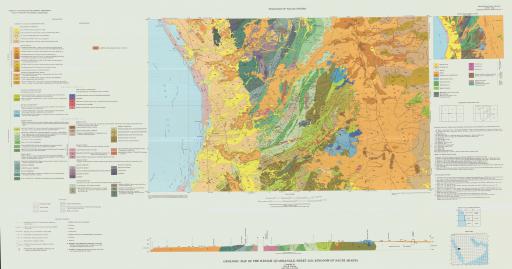

Camp V E, Roobol M J, 1991. Geologic map of the Cenozoic lava field of Harrat Rahat, Kingdom of Saudi Arabia. Saudi Arabia Directorate Gen Min Res, Map GM-123, 1:250,000 geol map and text.

Katsui Y (ed), 1971. List of the World Active Volcanoes. Volc Soc Japan draft ms, (limited circulation), 160 p.

Neumann van Padang M, 1963. Arabia and the Indian Ocean. Catalog of Active Volcanoes of the World and Solfatara Fields, Rome: IAVCEI, 16: 1-64.

Eruptive History

Summary of Holocene eruption dates and Volcanic Explosivity Indices (VEI).

Start Date Stop Date Eruption Certainty VEI Evidence Activity Area or Unit
[ 1292 ] [ Unknown ] Uncertain     Near Madinah
1256 Jun 5 1256 Jul 27 (?) Confirmed 3 Historical Observations Fissure 20 km SE of Madinah
0641 Unknown Confirmed 2 Historical Observations West of Madinah

This compilation of synonyms and subsidiary features may not be comprehensive. Features are organized into four major categories: Cones, Craters, Domes, and Thermal Features. Synonyms of features appear indented below the primary name. In some cases additional feature type, elevation, or location details are provided.


Raha, Harrat er-


Feature Name Feature Type Elevation Latitude Longitude
Bani Abdullah, Harrat Volcanic field 23° 30' 0" N 40° 5' 0" E
Hurus, Jabal al Cone 24° 16' 0" N 39° 53' 0" E
Ma'tan, Jabal Cone 24° 19' 0" N 39° 50' 0" E
Rashid, Harrat
    Medina, Harrat el-
    Madinah, Harrat
Volcanic field 24° 15' 0" N 39° 45' 0" E
Turrah, Harrat Volcanic field 23° 0' 0" N 40° 10' 0" E


Feature Name Feature Type Elevation Latitude Longitude
Diba' Al Hurus, Jibal Dome 24° 14' 0" N 39° 51' 0" E
Umm Ruqubah, Jabal Dome 24° 5' 0" N 39° 57' 0" E

Photo Gallery

The northern part of Saudi Arabia's largest lava field, 20,000 sq km Harrat Rahat, is seen in this Space Shuttle image (with north to the upper left). Harrat Rahat extends for 300 km south of the holy city of Madinah (Medina), the light-colored area at the top-center. Although basaltic scoria cones dominate Harrat Rahat, small shield volcanoes and pelean-type lava domes are also present. The best-known eruption took place in 1256 AD, when the large dark-colored flow seen extending to the upper right traveled 23 km to within 4 km of Madinah.

NASA Space Shuttle image ISS001-344-27, 2001 (http://eol.jsc.nasa.gov/).
