The Global Volcanism Program has no activity reports for Zuni-Bandera.

The Global Volcanism Program has no Weekly Reports available for Zuni-Bandera.

The Global Volcanism Program has no Bulletin Reports available for Zuni-Bandera.

This compilation of synonyms and subsidiary features may not be comprehensive. Features are organized into four major categories: Cones, Craters, Domes, and Thermal Features. Synonyms of features appear indented below the primary name. In some cases additional feature type, elevation, or location details are provided.

Synonyms

Bandera Lava Field | Malpais Volcanic Field | Grants Malpais

Cones

Feature Name

Feature Type

Elevation

Latitude

Longitude

Bandera, Cerro

Pyroclastic cone

2550 m

35° 0' 0" N

108° 6' 0" W

Colorado, Cerro

Cone

Encierro, Cerro

Vent

2298 m

34° 53' 0" N

108° 3' 0" W

Hoyo de Cibola

Vent

2380 m

34° 53' 0" N

108° 7' 0" W

Hueco, Cerro
Deer Mountain

Shield volcano

2441 m

Lost Woman

Cone - Crater

2459 m

34° 58' 0" N

108° 5' 0" W

Paxton Springs

Cone

35° 4' 0" N

108° 4' 0" W

Rendija, Cerro

Cone

34° 57' 0" N

108° 8' 0" W

Tetra, La
Tetera, Cerro

Cone - Crater

2458 m

34° 59' 0" N

108° 3' 0" W

Craters

Feature Name

Feature Type

Elevation

Latitude

Longitude

Bandera Crater

Crater - Cone

35° 0' 0" N

108° 5' 0" W

Calderon, El

Crater

2320 m

34° 58' 0" N

108° 1' 0" W

Laguna

Fissure vent

McCartys

Fissure vent

34° 48' 0" N

108° 0' 0" W

Twin Craters

Crater

2423 m

34° 59' 0" N

108° 4' 0" W

Basic Data

Volcano Number

Last Known Eruption

Elevation

Latitude
Longitude

327120

1170 BCE

2550 m / 8366 ft

34.8°N
108°W

Volcano Types

Volcanic field

Rock Types

Major
Basalt / Picro-Basalt

Tectonic Setting

Rift zone
Continental crust (> 25 km)

Population

Within 5 km
Within 10 km
Within 30 km
Within 100 km

18
18
246
54,738

Geological Summary

The Zuni-Bandera volcanic field covers 2,460 km² along the Jemez lineament west of the Rio Grande Rift. An older volcanic episode, mostly from vents along the Chain of Craters, took place about 3.8-3.7 million years ago (Ma); the younger episode began about 1.7 Ma and formed an extensive area of lava flows known as El Malpais. The youngest lava flow, the McCartys flow, traveled 60 km NE, fed by lava tubes up to 29 km long. The McCartys flow was recorded in native legends and was thought to have been erupted about 1,000 years ago, but radiocarbon dating indicates an age of about 3,000 years before present. The only other dated flow of Holocene age originated from Bandera Crater about 9,000-10,000 radiocarbon years ago. An earlier flow, the massive Pleistocene Fence Lake lava flow, traveled as far as 90 km W.

References

The following references have all been used during the compilation of data for this volcano, it is not a comprehensive bibliography.

Dunbar N W, Phillips F M, 2004. Cosmogenic 36Cl ages of lava flows in the Zuni-Bandera volcanic field, north-central New Mexico, U.S.A.. New Mex Bur Geol Geophys Bull, 160: 309-317.

Laughlin A W, Brookins D G, Causey J D, 1972. Late Cenozoic basalts from the Bandera lava field, Valencia County, New Mexico. Geol Soc Amer Bull, 83: 1543-1552.

Laughlin A W, Poths J, Healey H A, Reneau S, WoldeGabriel G, 1994. Dating of Quaternary basalts using the cosmogenic 3He and 14C methods with implications for excess 40Ar. Geology, 22: 135-138.

Lipman P W, Moench R H, 1972. Basalts of the Mount Taylor volcanic field, New Mexico. Geol Soc Amer Bull, 83: 1335-1344.

Maxwell C H, 1982. El Malpais. New Mexico Geol Soc Guidebook, 33rd Field Conf, p 299-301.

Maxwell C H, 1986. Geologic map of El Malpais lava field and surrounding areas, Cibola County, New Mexico. U S Geol Surv Map, I-1595.

Nichols R L, 1946. McCartys basalt flow, Valencia County, New Mexico. Geol Soc Amer Bull, 57: 1049-1086.

Eruptive History

There is data available for 2 confirmed Holocene eruptive periods.

1170 BCE ± 300 years Confirmed Eruption Max VEI: 0

Episode 1 | Eruption Episode

McCartys flow

1170 BCE ± 300 years - Unknown

Evidence from Isotopic: 14C (calibrated)

List of 4 Events for Episode 1 at McCartys flow

Start Date	End Date	Event Type	Event Remarks
- - - -	- - - -	Explosion	weak or small
- - - -	- - - -	Lava flow	violent, strong, or large
- - - -	- - - -	Cinder Cone
1170 BCE ± 300 years	- - - -	VEI (Explosivity Index)

8710 BCE ± 300 years Confirmed Eruption

Episode 1 | Eruption Episode

Bandera Crater

8710 BCE ± 300 years - Unknown

Evidence from Isotopic: 14C (calibrated)

List of 4 Events for Episode 1 at Bandera Crater

Start Date	End Date	Event Type
- - - -	- - - -	Explosion
- - - -	- - - -	Lava flow
- - - -	- - - -	Cinder Cone
- - - -	- - - -	Scoria

Deformation History

There is no Deformation History data available for Zuni-Bandera.

Emission History

There is no Emissions History data available for Zuni-Bandera.

Photo Gallery

Bandera Crater in the center is part of the Zuni-Bandera lava field that covers a 2460 km² area of central New Mexico. The lava field contains 74 vents that erupted voluminous lava flows, including the 90-km-long Fence Lake flow and the youngest flow of the lava field, the 3000-year-old McCartys lava flow. The McCartys flow traveled 60 km to the north, extending to the base of the Mount Taylor range, the peak in the distance.

Photo by Lee Siebert, 1987 (Smithsonian Institution).

Bandera Crater, one of the youngest features of the Zuni-Bandera lava field, is a breached cinder cone that fed a lava flow dated about 9000 BCE. The Bandera lava flow forms part of El Malpais (Spanish for "badlands"), the largely unvegetated, youngest Quaternary basaltic lava flows that cover a broad area south of Grants, New Mexico.

Photo by Lee Siebert, 1987 (Smithsonian Institution).

GVP Map Holdings

The maps shown below have been scanned from the GVP map archives and include the volcano on this page. Clicking on the small images will load the full 300 dpi map. Very small-scale maps (such as world maps) are not included. The maps database originated over 30 years ago, but was only recently updated and connected to our main database. We welcome users to tell us if they see incorrect information or other problems with the maps; please use the Contact GVP link at the bottom of the page to send us email.

Title: W US /Map of Dist, Comp, Age-Late CZ Volc Centers
Publisher: US Geological Survey
Country: United States
Year: 1984
Series: MI
Map Type: Geology (Volcano)
Scale: 1:2,500,000

Map of W US /Map of Dist, Comp, Age-Late CZ Volc Centers

Title: Geothermal Energy Resources of the Western United States
Publisher: ERDA and USGS
Country: United States
Year: 1977
Map Type: Cultural (Geothermal Resources)
Scale: 1:1,250,000

Map of Geothermal Energy Resources of the Western United States

Title: Saint Johns
Publisher: US Geological Survey
Country: United States
Year: 1970
Series: V502
Map Type: Topographic
Scale: 1:250,000

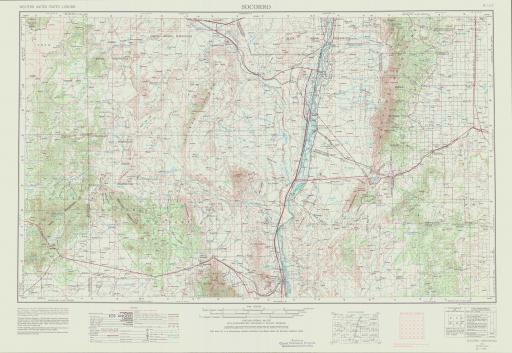

Title: Socorro
Publisher: US Geological Survey
Country: United States
Year: 1970
Map Type: Topographic
Scale: 1:250,000

Title: Geol Map of New Mexico
Publisher: USGS w/ UNM, Dept of Geol; NMIMT; State Bureau MMR
Country: United States
Year: 1965
Map Type: Geology
Scale: 1:500,000

Smithsonian Sample Collections Database

There are no samples for Zuni-Bandera in the Smithsonian's NMNH Department of Mineral Sciences Rock and Ore collection.
